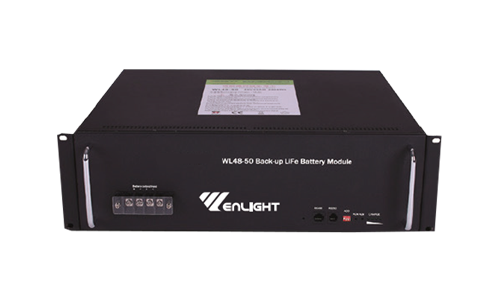

Enlight LIFePO4 range are suitable for telecom and industrial applications where high reliability and long life is essential. The LiFePo4 packs are suitable for rack mounting and can be easily used in locations where space is limited and less weight is desired.
With the latest development technology trends of international Telecommunication battery, adopt advanced Fe lithium battery system.
Advanced intelligent lithium battery management technology to ensure the intelligent automatic management.
With "Energy transfer" balanced patented technology, provide high efficiency balanced and prolong system operate life.
Excellent electromagnetic compatibility. The outdoor power system with this product comply with the main equipment when they working together, no interfere with each other.
Complete intelligent design, centralized monitoring unit have function of "three remote" (remote measure, remote communication, remote control), The system managed by computer, communicate with the remote monitoring center, unattended, in line with the requirements of the development of modern communications technology.
Combine the power control technology and computer technology, real-time monitoring and control the rectifier, AC and DC power distribution.
Configuration flexibility, support parallel connection expansion.
| Item | Type | Nominal Voltage (V) | Nominal Capacity (Ah) | Charge Voltage (V) | Max. Charge Current (A) | Optional Charging Current limit(A) | Output Voltage (V) | Max. Output Current (A) | Dimensions (WxDxH in mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | (9/748-10FT01 | 48 | 10 | 54.0 +/- 0.5 | 5 | 2 | 37.5 to 54.7 | 10 | 442x260x44 | 6.5 |
| 2 | (9/748-20FT01 | 48 | 20 | 54.0 +/- 0.5 | 10 | 2 | 37.5 to 54.7 | 10 | 442x400x88 | 12 |
| 3 | (9/748-40FT01 | 48 | 40 | 54.0 +/- 0.5 | 20 | 10 | 37.5 to 54.7 | 40 | 442x400x132 | 22 |
| 4 | (9/748-50FT01 | 48 | 50 | 54.0 +/- 0.5 | 20 | 10 | 37.5 to 54.7 | 50 | 442x400x132 | 30 |
| 5 | (9/748-70FT01 | 48 | 70 | 54.0 +/- 0.5 | 50 | 15 | 37.5 to 54.7 | 50 | 442x400x220 | 40 |
| 6 | (9/748-75FT01 | 48 | 75 | 54.0 +/- 0.5 | 50 | 15 | 37.5 to 54.7 | 50 | 442x400x220 | 45 |
| 7 | (9/748-100FT01 | 48 | 100 | 54.0 +/- 0.5 | 50 | 15 | 37.5 to 54.7 | 50 | 442x400x264 | 60 |
High energy density, small Size, light weight. Ultra long cycle performance. • Reliability: high safe and reliable system hardware configuration. Soft packed LiFePO4 battery cell and modular design.
Reliability: high safe and reliable system hardware configuration. Soft packed LiFePO4 battery cell and modular design.
Safety: Perfect protect system: overvoltage pro- tection, short circuit protection, overheat pro- tection, overload protection, etc.. Comply with EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4, EN61000-3-2, EN61000-3-3, EN60164-1-1, EN55022, EN50178, etc.
High usability: easy to be installed and have CAN, RS485 port.
Expansibility: RS485 port is reserved，easy to connect computer and read monitor data.
